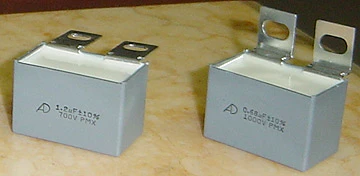

I.G.B.T SNUBBER CAPACITORS

I.G.B.T SNUBBER CAPACITORS

產品屬性:

Place of Origin	Taiwan
Brand Name	AD
Model Number	IGBT
Type	SNUBBER CAPACITOR
Application	Hight Voltage
Package Type	Radial
Capacitance	1.5uF to 60uF
Rated Voltage	250, 330, 400, 600, 700 Vdc
Operating Temperature	- 25°C~ + 85°C

	I.G.B.T SNUBBER CAPACITORS Main applications introduction : Switching capacitor for resonant, Industrial motor speed controls, Induction heaters, high frequency and High current applications Dielec tric Polypropylene electrodes vacuum deposited Metal layers Coating Solvent resistant plastic case with resin sealing (UL 94 V- 0), Flame retardant execution Construction Extended metallized film (Refer to general technical information) Terminals Tinned copper lugs(lead-free) for screw fixing (please refer to article table) Installation Whatever position assuring correct heat dissipation Arrangement of many components with box wallsin Contact not admittd; suggested minimum distance between Between side by side elements>-1/8 of the box thickness (B Size).Box with Lugs terminals must be free to correctly dissipate From all body faces Reference standard IEC 61071,IEC60068, Rohs compliant Climatic category 40/85/56(IEC60068/1), GPD(DIN40040) Operating temperature range(case) -40°C...+85°(100° observing voltage and current de-rating) Max. permissible ambient temperature +70°, operation at rated power, current, voltage and natural Cooling(+85°) Rated capacitance(Cr) 1.5uF to 60uF Refer to article table Capacitance tolerance(at 1kHz) +-10% (code=K), plusmn;5%(code=J), Other tolerances upon request Capacitance temperature coefficient Refer to graphs in general technical information Long term stability (at 1kHz) Capacitance variation-<±1% after a period of years at standard Environmental conditions Rated voltage(Ur) 250, 330, 400, 600, 700 Vdc If you have any inquiry, please don't hesitate to contact with Trustbond Technology Crop.,

I.G.B.T SNUBBER CAPACITORS

Main applications introduction :
Switching capacitor for resonant, Industrial motor speed controls, Induction heaters, high frequency and High current applications

Dielec tric
Polypropylene electrodes vacuum deposited Metal layers

Coating
Solvent resistant plastic case with resin sealing (UL 94 V- 0), Flame retardant execution

Construction
Extended metallized film (Refer to general technical information)

Terminals
Tinned copper lugs(lead-free) for screw fixing (please refer to article table)

Installation
Whatever position assuring correct heat dissipation Arrangement of many components with box wallsin Contact not admittd; suggested minimum distance between Between side by side elements>-1/8 of the box thickness (B Size).Box with Lugs terminals must be free to correctly dissipate From all body faces

Reference standard
IEC 61071,IEC60068, Rohs compliant

Climatic category
40/85/56(IEC60068/1), GPD(DIN40040)

Operating temperature range(case)
-40°C...+85°(100° observing voltage and current de-rating)

Max. permissible ambient temperature
+70°, operation at rated power, current, voltage and natural Cooling(+85°)

Rated capacitance(Cr)
1.5uF to 60uF Refer to article table

Capacitance tolerance(at 1kHz)
+-10% (code=K), plusmn;5%(code=J), Other tolerances upon request

Capacitance temperature coefficient
Refer to graphs in general technical information

Long term stability (at 1kHz)
Capacitance variation-<±1% after a period of years at standard Environmental conditions

Rated voltage(Ur)
250, 330, 400, 600, 700 Vdc
