Pressure Transducer

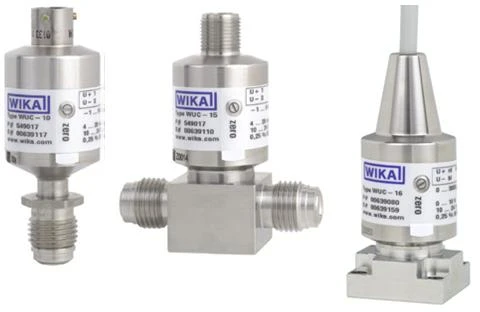

產品介紹： Compact The ultra compact design of the WUC-1X meets the smallest product footprint requirements. The space saving design easily replaces competitive transducers, making it the perfect fit for new equipment and retrofit projects. Our flow through (WUC-15) and surface mount (WUC-16) series transducers are specifically designed and manufactured to sustain torsion applied stresses often incurred during installation. The special design of our thin film sensor eliminates the risk of sensor signal error due to influenced loads at the pressure connection or welded joints. Versatile The highest materials of construction ensure thatevery WUC-1X series transducer is well suited for use in corrosive or non-corrosive medias. Additionally, because every WUC-1X series transducer comes standard with NEMA4 and ATEX certifications, it can be confidently installed in indoor or outdoor systems as well asin non-flammable or potentially flammable areas. The sealed side access zero point adjustment prevents entry of moisture when used outdoors. The transducer's non-incendive (ATEX) approvals for potentially flammable environments provide essential safeguards for life and product safety. Carrying a T6 temperature class designator, WUC-1X series transducers easily meet the measurement requirements for low, spontaneous ignition temperature medias such as phosphine (PH3) and silane (SiH4). Reliable Active temperature compensation reduces the transducers impact to changing temperatures and provides for safer operations in purge-vent cycling of high Joule-Thomson effect gases. The hermetically sealed design of the transducer's zero point potentiometer protects against unintentional change as well as prevents entry of moisture when used outdoors. The transducers thin film sensors are made of 2.47111/ UNSR 30003 to ensure high corrosion resistance and excellent hysteresis characteristics. The remaining wetted components are made from 316L VIM/VAR stainless steel. Prior to final assembly, all wetted parts are electropolished and cleaned using the latest techniques and industry standards. Individual testing of each transducer guarantees compliance with the requirements for leak integrity, overpressure stability, accuracy, and particles levels according to the applicable and relevant SEMI standards. 產品特色： Applications Semiconductor, Flat Panel Display and Photovoltaic Industry Special and bulkgas distribution systems (Gas Sticks, Gas Panels, VMBs) Special Features Compact design ATEX Zone 2 approval Ingress protection NEMA 4 (IP 67) with side access zero point adjustment Excellent EMC stability Active temperature compensation Accessories Attachable indicator with LED (N)WUR-1 4-digit display Ingress Protection IP 65 Accuracy: ≤ 0.5 % ± 1 Digit Up to 2 switch points freely programmable 5 different units manually adjustable
