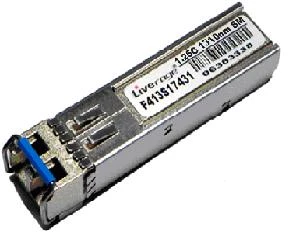

SFP1.25G 1310nm 10km

Description:
The F413S17431 of Small Form Factor Pluggable (SFP) transceiver module is specifically designed for high performance integrated duplex data link over single mode optical fiber. The high-speed laser diode and photo diode are provided as a light source and a detector, respectively. An EEPROM contained the detailed product information for the host equipment is accessed by the 2-wire serial CMOS EEPROM protocol. It complies with SFP MSA, SONET/SDH standards, Class 1 laser products, EN60825, and EN60950.

Feartures:
RoHS Compliant

Operation Temperature: 0~70℃
1310nm uncooled FPLD
10km link distance
Hot pluggable
Metal enclosure, low EMI
Single 3.3V power supply
Low Power Dissipation

Applications:
Metro Access Rings
Point to Point networking
1x Fiber Channel
Gigabit Ethernet
Suitable for Fast Ethernet and OC-12
