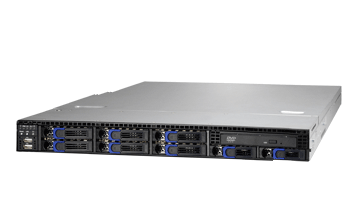

B8230G62W8H-LE

System Form Factor 1U Rackmount Chassis Mo

B8230G62W8H-LE

System	Form Factor		1U Rackmount
	Chassis Model		GT62
	Dimension (D x W x H)		24.6" x 17.2" x 1.72" (625.4 x 436 x 43.6mm)
	Motherboard		S8230WGM4NR-LE
	Board Dimension		EATX, 12"x13" (305x330mm)
	Gross Weight		16 kg
Front Panel	Buttons		(1) PWR / (1) RST / (1) ID
	LEDs		(1) HDD / (2) LAN / (1) ID / (1) Warning
	I/O Ports		(2) USB ports
External Drive Bay	Type / Q'ty		2.5" Hot-Swap / (8)
	Supported HDD Interface		SAS 3.0Gb/s / SATA-II 3.0Gb/s
System Cooling Configuration	FAN		(5) 4cm fans
Power Supply	Type		EPS1U
	Efficiency		PFC / 80 plus gold
	Input Range		Full-range AC(100-240V)
	Frequency		47 - 63 Hertz
	Output Watts		500 Watts
Processor	Supported CPU Series		AMD 45nm 8-Core/12-Core Opteron 6100 Series Processors (Magny-Cours)
	Socket Type / Q'ty		G34 / (2)
	Average CPU Power (ACP) wattage		Up to 80W
	System Bus		Up to 6.4 GT/s Hyper-Transport link support
Chipset	Chipset		AMD SR5670 + SP5100
	Super I/O		Winbond W83627
Memory	Supported DIMM Qty		(8)+(8) DIMM slots
	DIMM Type / Speed		U/RDDR3 & LV RDDR3, 800/1066/1333 MHz
	Capacity		Up to 128GB
	Memory channel		4 Channels per CPU
	Memory voltage		1.5V or 1.35V
Expansion Slots	PCI-E		(1) PCI-E Gen.2 x16 slot
	Note:		Support full height add-on cards
	Pre-install TYAN Riser Card		M2091, PCI-E x16 1U riser card (left)
	Max. HBA Dimension (H x L)		(1) 111.15mm x 167.65mm (FH/HL)
LAN	Port Q'ty		(4)
	Controller		Intel 82574L / Intel 82576EB
Graphic	Connector type		D-Sub 15-pin
	Resolution		1600x1200@60Hz
	Chipset		Aspeed AST2050
I/O Ports	USB		(6) ports (2 at front, 2 at rear and 2 Type A onboard)
	COM		(1) DB-9 COM port
	VGA		(1) D-Sub 15-pin port
	RJ-45		(4) ports
System Monitoring	Chipset		Winbond W83795G
	Voltage		Monitors voltage for CPU, memory, chipset & power supply
	Temperature		Monitors temperature for CPU & system environment
	LED		Fan fail LED indicator / Over temperature warning indicator / Fan & PSU fail LED indicator
	Others		Watchdog timer support
Server Management	Onboard Chipset		Onboard Aspeed AST2050
	AST2050 IPMI Feature		IPMI 2.0 compliant baseboard management controller (BMC) / USB 2.0 virtual hub / BIOS update
	AST2050 iKVM Feature		24-bit high quality video compression / Dual 10/100 Mb/s MAC interfaces
BIOS	Brand / ROM size		AMI / 4MB
	Feature		Plug and Play (PnP) /PCI2.3 /WfM2.0 /SMBIOS2.3 /PXE boot / ACPI 2.0 power management /Power on mode after power recovery / User-configurable H/W monitoring / Auto-configurable of hard disk types
Operating System	OS supported list		Coming soon
Regulation	FCC (DoC)		Class A
	CE (DoC)		Yes
Operating Environment	Operating Temp.		10° C ~ 35° C (50° F~ 95° F)
	Non-operating Temp.		- 40° C ~ 70° C (-40° F ~ 158° F)
	In/Non-operating Humidity		90%, non-condensing at 35° C
RoHS	RoHS 6/6 Complaint		Yes
Package Contains	Barebone		(1) GT62B8230-LE Barebone
	Manual		(1) Quick Ref. Guide / (1) MB User's manual + (1) BB User's manual
	Installation CD		(1) TYAN installation CD
	Heatsink / Cooler		(2) G34 CPU heatsinks
	Rail kit		(1) CRAL-0031, sliding rail kit for KGT24/ KGT62
	Cable	Power Cord	(1) CCBL-0310, US type power cord / (1) CCBL-0300, EU type power cord
