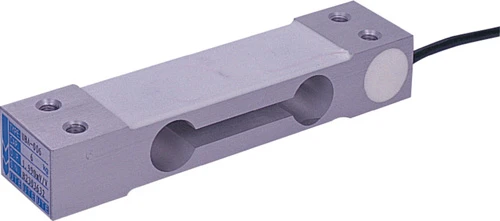

荷重元LSU-BX系列
1.LSU-BA, LSU-BX, LSU-BAX型傳感器的秤量從
|
|
|
|
1.LSU-BA, LSU-BX, LSU-BAX型傳感器的秤量從3Kg到200Kg 2.全鋁合金結構，密封緊密，可適用於多種的秤重設備。 |
|
|
|
||||||||
|
型號 Type |
LSU-BA-3 | LSU-BA-6 | LSU-BA-12 | LSU-BA-20 | LSU-BX-30 | LSU-BX-50 | LSU-BX-100 | LSU-BX-200 |
|
額定載荷 Maximum capacity |
3kg | 6kg | 12kg | 20kg | 30kg | 50kg | 100kg | 200kg |
|
彈性體材質 Material |
Aluminum | |||||||
|
推荐激勵電壓 Recommended excitation |
10V | |||||||
|
最大激勵電壓 Maximum Excitation |
15V | |||||||
|
輸出靈敏度 Rated output (=RO) |
2 ± 0.05 mV/V | |||||||
|
零點範圍 Zero balance |
± 0.030%RO | |||||||
|
蠕變(20min) Creep error (20 minutes) |
± 0.025%RO | |||||||
|
重復性 Repeatability |
± 0.02%RO | |||||||
|
輸入阻抗 Repeatability |
394 ± 3Ω | |||||||
|
輸出阻抗 Output resistance |
350 ± 3Ω | |||||||
|
溫度補償範圍 Compensated temperature range |
-10 ~ 40℃ | |||||||
|
允許使用溫度範圍 Operating temperature range |
-20 ~ 60℃ | |||||||
|
溫度對輸出靈敏度的影響 Temperature effect on output |
0.02%Load/10℃ | |||||||
|
溫度對零點輸出的影響 Temperature effect on zero |
0.02%RO/10℃ | |||||||
|
安全過載範圍 Safe load limit |
150%of rat. cap. | |||||||
|
極限過載範圍 Ultimate load |
200%of rat. cap. | |||||||
|
密封 Sealing |
Potted | |||||||
|
防護等級 Protection class |
IP 66 | |||||||
|
