D27系列_ Led 背光驅動板
D27LED背光驅動板是一款（升壓/定電流）支援中大尺寸面板 支援:軍用顯示器,船用顯示器,工業用顯示器,廣告機顯示器,KIOSK,NEC,SHARP.
D27 Series_LED driver board（升壓_定電流）
The D27 series is a high voltage Boost driver with 1~4 channels(option) adjustable constant current regulators for LED backlight applications.one to eight regulated current ports are designed to provide uniform and pure DC constant current sinks for driving LEDs within a large range VF variations. It can drive a number of LEDs in series/parallel configuration.
It could output the lowest dropout voltage among used channels to Boost Driver in order to maintain the output voltage in optimal level. An OVP circuit is built for open-loop protection when any string becomes open.
The built in DC to PWM (Pulse Width Modulation) module signal for the dimming control function allows users to set LED brightness smoothly.
*********************
*********************
D27系列是一款（升壓/定電流）LED背光驅動板(For LCD Panel)
支援:軍用顯示器,船用顯示器,工業用顯示器,廣告機顯示器,KIOSK,NEC,SHARP, Mitsubishi等

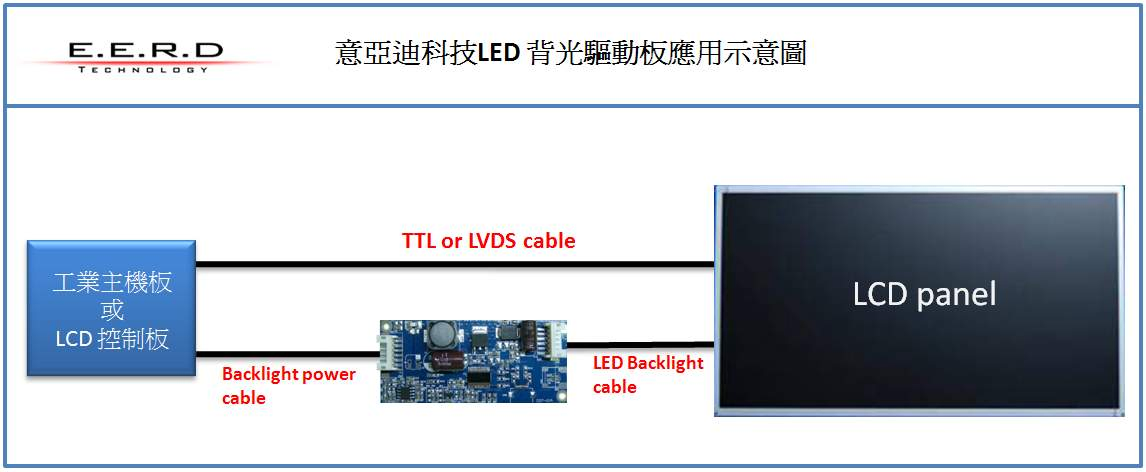

LED_converter_board

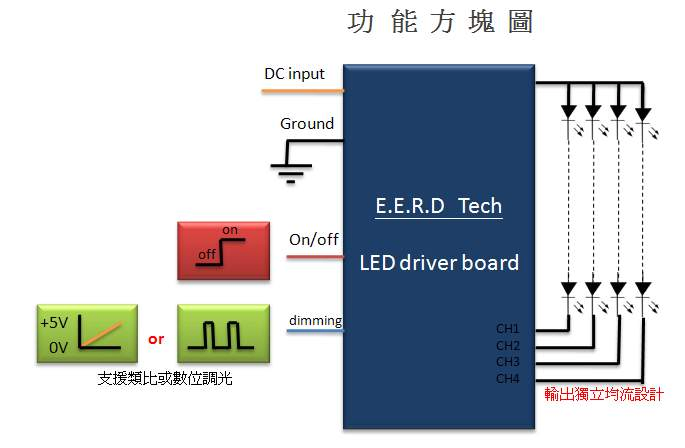

LED_converter_board功能方塊圖
