GGB 軟探針

Specification:
1.GGB軟探針T-4-5(0.2 um tip)
Tungsten Probing Wire Shaft Diameter 5micron
Point Radius 0.2 micron毛針直徑

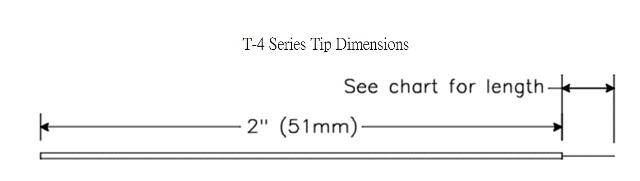

Tip Length 0.13"(3.3mm)毛針長度

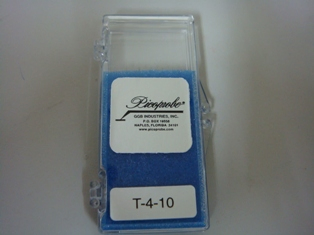

2.GGB軟探針T-4-10(0.2 um tip)
Tungsten Probing Wire Shaft Diameter 10micron
Point Radius 0.2 micron
Tip Length 0.13"(3.3mm)
3.GGB軟探針T-4-22(2 um tip)
Tungsten Probing Wire Shaft Diameter 22micron
Point Radius 2 micron
Tip Length 0.20"(5.1mm)
4.GGB軟探針T-4-35(4 um tip)
Tungsten Probing Wire Shaft Diameter 35micron
Point Radius 4 micron
Tip Length 0.20"(5.1mm)
5.GGB軟探針T-4-60(6 um tip)
Tungsten Probing Wire Shaft Diameter 60micron
Point Radius 6 micron
Tip Length 0.20"(5.1mm)
6.GGB軟探針T-4-125(10 um tip)
Tungsten Probing Wire Shaft Diameter 125micron
Point Radius 10 micron
Tip Length 0.20"(5.1mm)
