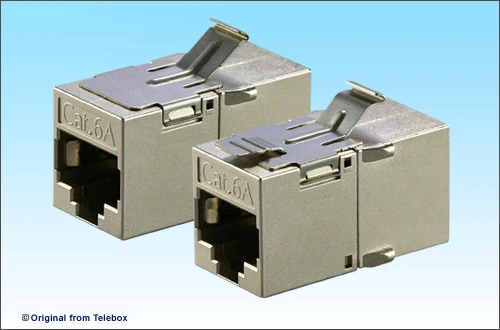

Cat.6A STP Coupler

Specification: Qualified Screened Category 6A Permanent Link and Channel of TIA/EIA-568-B.2-10 IEC 60603-7-5 ISO/IEC 11801 2nd edition Cenelec EN 50173 Electrical: Current Rating: 1.5 Amps Insulation Resistance: 500 Mohms Minimum Contact Resistance: 20 mohms Maximum DC Resistance: 0.1 ohms Maximum Mechanical: Plug Insertion Life: 750 Cycles Minimum Plug & Jack Contact Force: 100 Grams Minimum Using FCC-Approved Plug Plug Retention Force: 30 lbs Minimum Temperature: -40° to 150°F (-40°C to 68°C) Physicals: Housing: Die casting, alloy 3 Bracket: 0.3t SUS 301 PCB: FR4, 1.0mm thickness Jack wire: Phosphor bronze gold over nickel plated
