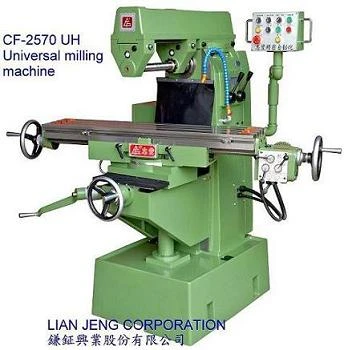

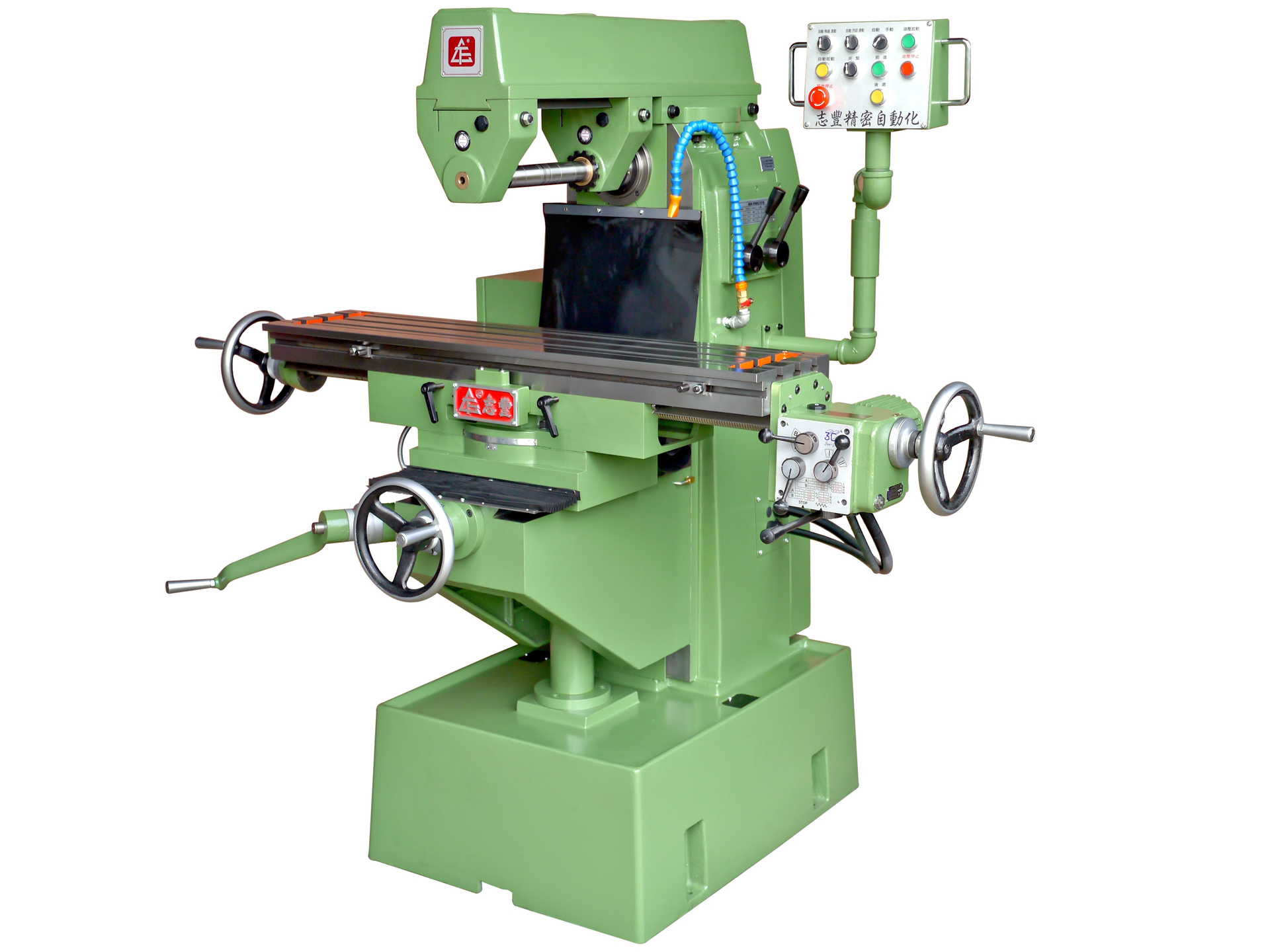

萬能銑床CF-2570H-UH

萬能銑床Universal milling machine Model型號CF-2570H/UH CF-2570VH/VHU

Model型號	CF-2570H/UH			CF-2570VH/VHU
工作臺Table
Working surface(L×W)面積	1100x250mm
Table travel(X/Y/Z)行程	700(Power feed:600)x280(Rotary table:270)x485(Rotary table:385)mm
T-slots T型槽	3-16 mm x 60 mm
Range of longitudinal feed speed (mm/min) 左右自動進刀 (選配 / opt.)	30-825mm/min (9段 / 9steps)
Range of longitudinal rapid speed (mm/min) 左右自動快送 (選配 / opt.)	1300mm/min
Vertical Spindle立主軸
Spindle nose 主軸錐度	---			N.T.#40
Spindle speed(8steps)R.P.M轉速				210,420,690,980,1380,1720,1960,3440 (60Hz)
				170,340,570,810,1140,1430,1620,2860 (50Hz)
Distance from spindle end to table top 主軸端到工作臺面距離				80-565mm
Distance from spindle center to column 主軸中心到機柱面距離				150-500mm
Vertical travel of quill通心軸移動量				125mm
Swiveling angle of head(right & left) 銑頭傾斜角度(左右各)				90°
Cross travel of ram伸出臂移動量				350mm
Horizontal rotation angle or ram 水平旋轉角度				360°
Horizontal Spindle橫主軸
Spindle nose主軸錐度	N.T.#40
Spindle speed(6 steps)R.P.M轉速	50-1180 (60Hz)
	40-980 (50Hz)
Distance from spindle center to table top 主軸中心到工作臺面距離	0-485(Rotary table:385)mm
Distance from spindle center to ram bottom 主軸中心至伸出臂底面距離	115mm
Motors馬達
For vertical spindle立主軸	---			2.2KW(3HP)-4/8P
For Horizontal spindle橫主軸	2.2KW(3HP)-4P
For table feed工作臺進給 (opt.)	0.375KW(1/2HP)-4P
For cutting fluid pump切削液體泵用	0.1KW(1/8HP)-4P
Size of machine尺寸
Net weight淨重 (approx.)	1,200kg			1,300kg
Dimensions of machine機械尺寸	1190x1720x1650mm			1500x1720x2190mm
Dimensions of packing case裝箱尺寸	1160x1600x1780mm			1380x1600x1950mm
Standard Accessories標準配備
Lubrication system 潤滑油系統 1set		Coolant device 冷卻裝置 1 set
Horizontal cutter arbor臥銑刀桿 1 set		Horizontal cutter sleeve臥銑刀桿套筒 1 set
Adjusting tools & tool box工具及工具箱 1 set		Table power feed-400W進刀器 1 set
Rotary table 旋轉工作臺
Optional Accessories選購配備
Working light工作燈			Digital readout光學尺
Waterproof dish防水盤
