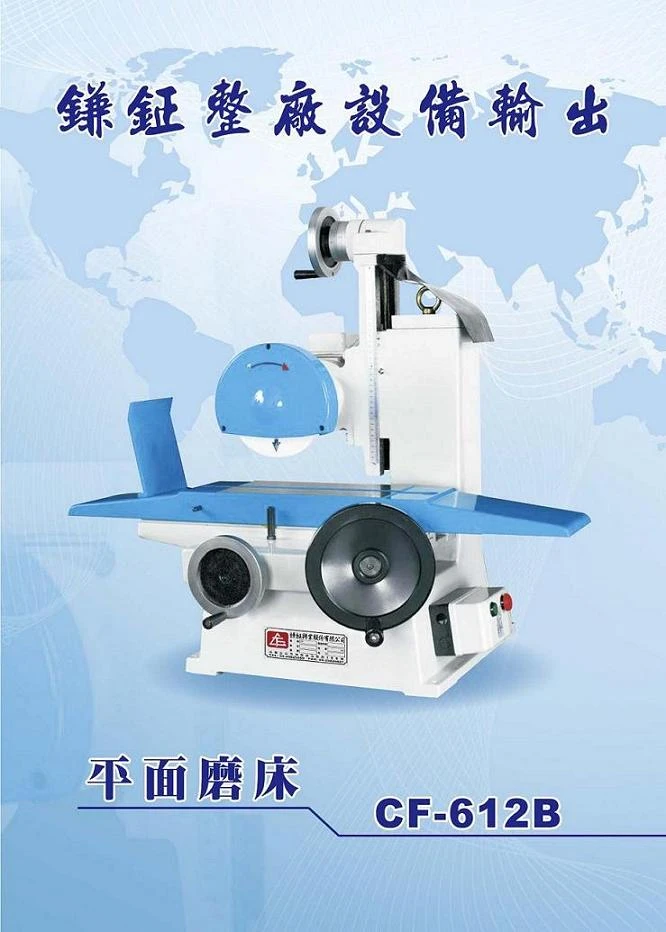

桌上型平面磨床
平面磨床,磨床,surface grinding machine, grind
|
Models (CF-612B) |
||
|
Table |
||
|
Table size |
152×305mm |
|
|
Max.grinding length |
320mm |
|
|
max.grinding width |
170mm |
|
|
Distace from table surface to spindle center |
280mm |
|
|
Wheel size(dea×width×bore) |
178×12.7×31.7mm |
|
|
Spindle speed(50/60Hz) |
2800/3600rpm |
|
|
Spindle motor |
0.75HP |
|
|
T-slot |
12.7×19.5×398mm |
|
|
Vertical feed handwheel per gra. |
0.01mm |
|
|
Cross feed handwheel per gra |
0.02mm |
|
|
Coolant pump motor |
-- |
|
|
Floor space |
430×440mm |
|
|
Net weight |
210kgs |
|
|
Gross Weight |
260kgs |
|
|
Packing dimensions |
1040×730×950 |
|
Standard Accessories
Steel floor stand (612BC only)
Coolant system (612BC only)
Splash guard (612BC only)
Hand operated lubricator (612BC only)
Grinding wheel, wheel flange, wheel guard
Tool kit
Optional Accessories
Permanent chuck
Diamond dresser
Balancing stand
Hand operated lubricator (for 612B)
Steel floor stand (for 612B)
