極片沖剪器

Foil Punch Unit

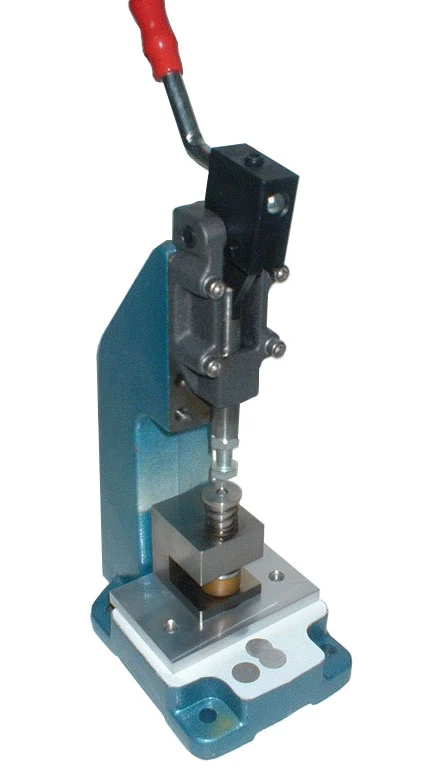

SE_PU-01 can punch the copper or aluminum foil to round flakes which are used as anode or cathode pallet in coin cells. This device includes a punch mold set and a ready-made handy press. Standard punch diameter is 5-30mm with 0.07-0.18mm thickness, this diameter should be specified before order, and very thin or very thick foil can be evaluated, please just feel free to contact.

SPECIFICATION

Dimensions:
Press: 100W x 150D x 250H mm (w/o handle);
            100W x 220D x 380H mm (for handle motion)
Mold: 90W x 50D x 70H

Weight:
Press: 3.6 Kg
Mold: 0.56 Kg

Material:
Press: Cast Iron
Mold: Tool Steel
