管夾式測溫器

管夾式測溫器
溫度範圍 : -50℃～+120℃(-58 ℉ ~+248℉) 或
                   -50℃～+600℃(-58 ℉ ~+1112℉)
適用於冷煤管、排氣管、變壓器、電瓶、 電熱管等圓形管狀直徑3mm ～ 48mm範圍之內的表面溫度

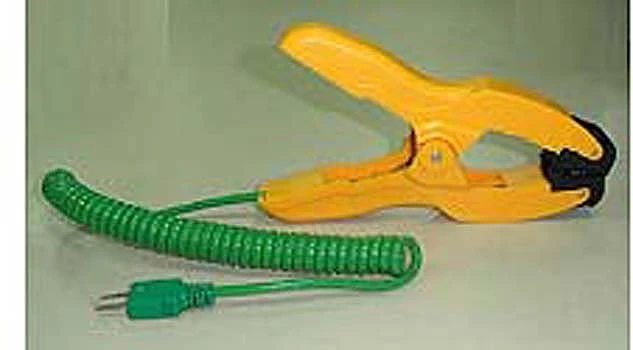

PC-102 Pipe Clamp Temperature Probe

Specification :



1. temperature range : -50℃～+120℃(-58 ℉ ~+248℉)  or
                                  -50℃～+600℃(-58 ℉ ~+1112℉)


2. accuracy : ±2.5℃ ( -50 ℃ ~ +350℃)

           ±4.5 ℉ (-58 ℉ ~ +662℉)

           the remainder range :  ±0.0075∣t∣



3. plug the PC-102 to type K thermometer



4. for pipe size from 3mm ～ 40mm



5. with 2 M coiled cable

  blue color, yellow color, green color are available ( by optional )



6. Type J, Type T, Type E are available  ( by optional )



7. N.W. : 125 g





 Applications :



 ideal for pipe surface temperature, heating,  ventilating,

 air conditioning, engine or cylinder circular tube …etc.
