MVM230

TheMVM230isahighperformance23”professionalLCDmonitorfeaturingquadsplitdisplays.Itsupportsquali

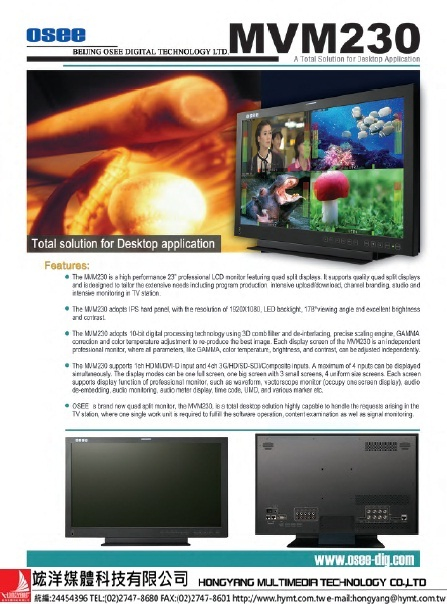

The MVM230 is a high performance 23” professional LCD monitor featuring quad split displays. It supports quality quad split displays
and is designed to tailor the extensive needs including program production, intensive upload/download, channel branding, studio and
intensive monitoring in TV station.

The MVM230 adopts IPS hard panel, with the resolution of 1920X1080, LED backlight, 178°viewing angle and excellent brightness
and contrast.

The MVM230 adopts 10-bit digital processing technology using 3D comb filter and de-interlacing, precise scaling engine, GAMMA
correction and color temperature adjustment to re-produce the best image. Each display screen of the MVM230 is an independent
professional monitor, where all parameters, like GAMMA, color temperature, brightness, and contrast, can be adjusted independently.

The MVM230 supports 1ch HDMI/DVI-D input and 4ch 3G/HD/SD-SDI/Composite inputs. A maximum of 4 inputs can be displayed
simultaneously. The display modes can be one full screen, one big screen with 3 small screens, 4 uniform size screens. Each screen
supports display function of professional monitor, such as waveform, vectorscope monitor (occupy one screen display), audio
de-embedding, audio monitoring, audio meter display, time code, UMD, and various marker etc.

OSEE’s brand new quad split monitor, the MVM230, is a total desktop solution highly capable to handle the requests arising in the
TV station, where one single work unit is required to fulfill the software operation, content examination as well as signal monitoring.
